When it comes to mobile deployment, d&b audiotechnik systems have all the necessary qualifications: neutral sound, light compact cabinets and a rigging system that is safe, easy and swift to install, especially for flown arrays. Any system, in any configuration can be remotely controlled from a single point using the d&b Remote network together with their state-of-the-art amplifiers. The careful modular design of d&b systems not only allows full acoustical, mechanical and electrical compatibility but also takes into account standard truck widths.
J8 loudspeaker (16 Available)
The J8 is a 3-way design housing 2 x 12″ LF drivers, one hornloaded 10″ MF driver and two 1.4″ exit HF compression drivers with 3″ voicecoils mounted to a dedicated waveshaping device. The mechanical and acoustical design enables flown vertical columns of up to 24 loudspeakers to be suspended using vertical splay angles between them of 0° to 7° with a 1° resolution. The cylindrical wave segments produced couple coherently in the vertical plane. Due to the dipolar arrangement of the neodymium LF drivers the exceptional 80° horizontal constant directivity dispersion control is nominally maintained down to 250 Hz.The J8 is acoustically and mechanically compatible with the J12 loudspeaker. It can be used in columns of purely J8 loudspeakers or combined with J12s and / or with J-SUBs. The J8 cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill, the side and rear panels incorporate four handles, and two NLT4F/M, EP5 or NL8 connectors wired in parallel are also mounted at the rear.
J-SUB (12 Available)
The J-SUB is an actively driven 2-way bass-reflex design housing three long excursion neodymium 18″ drivers, two drivers face to the front and one driver to the rear. The cardioid dispersion pattern resulting from this approach avoids unwanted energy behind the system, which greatly reduces the reverberant field at low frequencies and provides the greatest accuracy of low frequency reproduction.J-SUB cabinets can be used to supplement J8 and J12 loudspeakers in various combinations, ground stacked or flown, either integrated on top of a J8 / J12 array or as a separate column. The J-SUB cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front and rear of the loudspeaker cabinet are protected by a rigid metal grill and the side panels incorporate eight handles. Four 100 mm wheels and one EP5 or NL8 connector are mounted at the rear.
B2-Sub (12 Available)
The B2 subwoofer with its high output bandpass horn design and extremely high SPL is ideal for extended bass requirements. It is configurable to be either an infrabass for the C4 system or a high output, alternative subwoofer for the F1222 or C7 systems. When used with a C4 system, d&b recommend a ratio of four C4-SUBs to one B2. The B2 cabinet is constructed from marine plywood, has an impact resistant paint finish and eight integral steel handles. The front of the subwoofer cabinet is fitted with catches at the sides for securing an optional wooden lid, and mounted on the rear are four heavy duty wheels.
M4 (12 Available)
The M4 is a 2-way high performance stage monitor that produces 134/138/138 dB SPL when driven passively with the D6/D12/D80 respectivly or 140 dB SPL when driven actively with the D12/D80. The constant directivity dispersion of 50° x 70° (h x v) delivers an accurately defined coverage area on stage and, when used upright, it is transformed into a powerful PA system with a dispersion suitable for a variety of applications. The M4 cabinet is constructed from marine plywood, which incorporates the handles, and has an impact resistant paint finish. It has two M10 threaded inserts on each side panel to enable quick and flexible rigging and a socket to accept loudspeaker stands. Two runners recessed in the bottom panel protect the cabinet from scratching and prevent movement.
D12 Amplifier (24 Available)
The 3 RU two channel D12 amplifier delivers medium to high power into low impedance loads between 4 and 16 ohms and is ideally suited for use in both mobile and installation environments. The D12 contains setups for all d&b loudspeakers and a linear mode. The signal delay capability enables user definable settings of up to 340 msec (=100 m/328.1 ft) to be applied independently to each channel. The same applies to the 4-band parametric equalizer, providing optional boost/cut or notch filtering. The D12 incorporates a digital rotary encoder and a LCD display to configure the amplifier.The D12 utilizes an autosensing switch mode power supply for mains voltages 120 V/230 V, 50 – 60 Hz (optional 100/200V). The D12 amplifier incorporates d&b SenseDrive for accurate control of LF drivers in d&b loudspeakers driven in 2-Way Active mode or in actively driven d&b subwoofers. When the D12 is fitted with EP5 connectors and appropriate 5 wire cabling, d&b SenseDrive can be used, resulting in an extremely precise bass performance even at high levels. NL4 and NL8 connector options are also available. RJ 45 connectors enable access to the Remote network via CAN-Bus. d&b System check verifies that the system performs within a predefined condition, whilst d&b Load monitoring enables an automatic and continuous impedance monitoring. Both can determine the status of an LF or HF driver in systems with multiple elements, even if these are crossed over passively.
D80 Amplifier (12 Available)

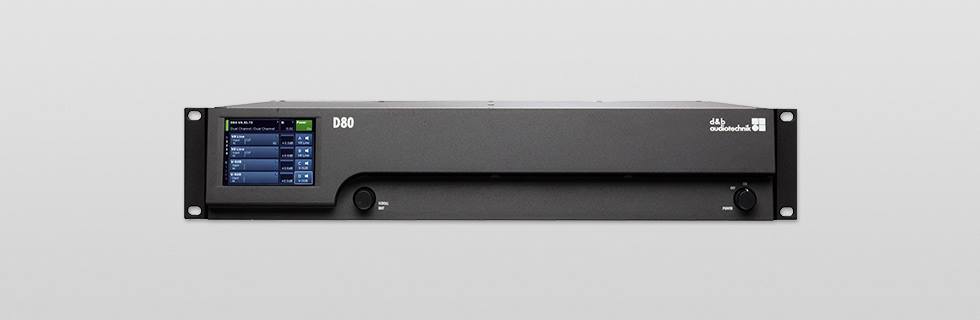

The 2 RU four channel D80 amplifier is a high power density amplifier, ideally suited for use in both mobile and installation environments. It contains configurations for all d&b loudspeakers and a linear mode. The signal delay capability enables user definable settings of up to 10 s (3440 m/11286 ft) to be applied independently to each channel. The same applies to the two 16-band equalizers, providing optional parametric, asymmetric, shelving or notch filtering.The D80 incorporates a colour TFT touchscreen, offering quick access to the menu structure, while the rotary encoder can be used for fine adjustment. The front panel and the integrated touchscreen of the D80 amplifier is tilted up for ease of operation when the amplifier is below eye level.
Q1 Loudspeaker (28 Available)
The Q1 is a passive 2-way loudspeaker housing two 10″ LF drivers positioned in a dipolar arrangement and a 1.3″ HF compression driver fitted to a toroidal waveshaping device. The 75° constant directivity horizontal dispersion pattern is maintained down to 400 Hz, while the vertical HF dispersion of 15° allows the Q1 to be used to construct vertical columns that produce a curved coherent wavefront.The mechanical and acoustical design of the cabinet enables vertical splay angles to be set between 0° and 14°. Q1 cabinets can therefore be used in vertical configurations starting from two cabinets with a 15° to 30° dispersion, up to 20 cabinets with a fully user and venue defined vertical profile. The Q1 cabinet is constructed from marine plywood, incorporates a pair of handles and has an impact resistant paint finish. The front of the loudspeaker is protected by a rigid metal grill covered with replaceable acoustically transparent foam, and two EP5 or NL4 connectors wired in parallel are mounted on the rear panel.
Q7 Loudspeaker (4 Available)
The Q7 is a 75° x 40° passive 2-way loudspeaker housing two 10″ LF drivers and a 1.3″ HF compression driver with a rotatable constant directivity horn and a passive crossover network. The two 10″ neodymium LF drivers are positioned in a dipolar arrangement providing exceptional vertical dispersion control with the nominal angle being maintained down to 400 Hz. The Q7 with the horn rotated is used to mount the loudspeaker horizontally where space is limited, or the maximum horizontal pattern control is needed and when added to the bottom of Q1 arrays. The Q7 can be used as a stand-alone full range system, in combination with other Q-Series cabinets ground stacked or mounted on a high stand with a swivel bracket. They can also be combined in flown array systems. The Q7 cabinet is constructed from marine plywood and has an impact resistant paint finish. The front of the loudspeaker cabinet is protected by a rigid metal grill, covered with a replaceable acoustically transparent foam. The cabinet incorporates a pair of handles and mounted on the rear panel are two EP5 or NL4 connectors wired in parallel.
Q10 Loudspeaker (4 Available)
The Q10 is a 110° x 40° passive 2-way loudspeaker housing two 10″ LF drivers and a 1.3″ HF compression driver with a rotatable constant directivity horn and a passive crossover network. The two 10″ neodymium LF drivers are positioned in a dipolar arrangement providing exceptional vertical dispersion control with the nominal angle being maintained down to 400 Hz. The Q10 can be used as a stand-alone full range system or in combination with other Q-Series cabinets ground stacked or mounted on a high stand with the Q Flying bracket. When used in the upright configuration it has a very accurate 110° horizontal constant directivity behaviour that is maintained down to approximately 800 Hz. Its wide constant directivity performance provides remarkable transparency when used in close proximity to listeners. It is also ideally suited to ambient and / or distributed sound reinforcement tasks where orientation within the sound field is critical. The Q10 cabinet is constructed from marine plywood and has an impact resistant paint finish. The front of the loudspeaker cabinet is protected by a rigid metal grill, covered with a replaceable acoustically transparent foam. The cabinet incorporates a pair of handles and mounted on the rear panel are two EP5 or NL4 connectors wired in parallel.
Q-SUB (20 Available)
The Q-SUB is an actively driven low compression bass-reflex loudspeaker fitted with a high excursion 18″ driver. d&b SenseDrive technology is available when powered by the D12 amplifier. The Q-SUB is mechanically compatible with the Q1 and Q7; ten sockets in the front grill and side panels for Q-Series rigging components permit use in various combinations, either flown or ground stacked. The Q-SUB cabinet is constructed from marine plywood with an impact resistant paint finish, a pair of handles, four heavy duty wheels and an M20 threaded flange in the top panel to accept a loudspeaker stand. The front of the loudspeaker cabinet is protected by a rigid metal grill covered with replaceable acoustically transparent foam and two EP5 or NL4 connectors wired in parallel are mounted on the rear panel. Two runners protect the bottom of the cabinet from scratching; these are located in correspondingly shaped recesses in the top panel to prevent movement when stacked. Fittings for securing an optional wooden lid are also provided.
T10 Loudspeaker (8 Available)
The T10 is a passive 2-way loudspeaker housing two 6.5″ drivers positioned in a dipolar arrangement and a 1.4″ HF compression driver and a passive crossover network. The T10 can be used both as a line array and as a high directivity point source loudspeaker. The HF driver is fitted to a unique waveguide horn producing vertical line source directivity with a 90° horizontal pattern that is maintained down to approximately 600 Hz.An acoustic lens placed in front of the horn widens horizontal dispersion to 105°, rotation of the horn by 90° relative to this produces an accurate point source dispersion, transforming a vertically oriented T10 into a stand-alone full range loudspeaker with 90° horizontal and 35° vertical directivity pattern. The T10 cabinet is constructed from polyurethane integral hard foam, incorporates integrated line array rigging hardware and has an impact resistant finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam, and two EP5 or NL4 connectors wired in parallel are mounted on the rear panel.
T-Sub (2 Available)
The T-SUB is an actively driven bass-reflex loudspeaker fitted with a high excursion 15″ driver. d&b SenseDrive technology is available when powered by the D12 amplifier. It can be used to supplement the LF headroom of the T10 loudspeaker in various combinations, ground stacked or flown, either integrated on top of a T10 array or as a separate column. The loudspeakers are mechanically connected using rigging links on both sides of the cabinet front, which slide out when needed, and with a central splay link at the rear of the cabinet. The T-SUB cabinet is constructed from marine plywood with an impact resistant paint finish and a handle in the top panel. The front of the loudspeaker cabinet is protected by a rigid metal grill in front of an acoustically transparent foam and two EP5 or NL4 connectors wired in parallel are mounted on the rear panel.
